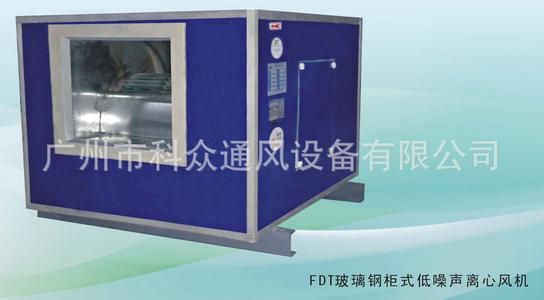

FDT FRP cabinet fan

ModelFDT FRP cabinet fan
BrandKEZHONG fan

详细描述

FDT (cabinet) low noise cabinet centrifugal fan to draw fans of all domestic strengths, combined with our years of careful development and improvement of wind cabinet, with superb advanced technology and rich experience in the design and excellent mechanical structures made of ʱ?? Its shell is made of glass fiber reinforced plastic composite material, increased corrosion resistance. Improve the overall fan anti-corrosion, anti-aging properties. Fans of the series with the overall design elegant, air volume, mechanical vibration, low noise, easy to aging, long service life. Widely used in hotels, sprinkle floor kitchen, shopping malls, theaters, office buildings, basement, central air conditioning, refrigeration engineering and other places.
Parameters:

Size(NO)	Power(KW)	Speed(r/min)	volumeFlow(M³/h)	TotalPressure(Pa)
9	0.55	800	1590--2676	141--86
	0.75	900	1790--3010	178--110
	1.1	1200	2386--4014	317--195
	1.5	1400	2784--4683	432--266
10	0.75	800	2238--3760	177--108
	1.1	900	2514--4230	224--138
	1.5	1200	3352--5640	398--245
	2.2	1400	3911--6580	542--334
12	1.1	800	3771--6344	251--154
	1.5	900	4243--7173	318--196
	2.2	1200	5659--9516	565--348
	3	1400	6600--11102	769--471
15	1.5	600	4607--7749	196--121
	2.2	720	5528--9288	282--174
	3	850	6526--10977	393--242
	4	900	6910--11623	441--272
18	2.2	600	7733--13007	284--176
	3	720	9279--15608	408--253
	4	800	10310--17342	504--312
	5.5	830	10697--17993	543--336
20	3	560	9196--15469	289--180
	4	610	10017--16850	343--213
	5.5	720	11824--19889	479--298
	7.5	800	13137--22098	591--368
22	4	600	14026--23590	422--273
	5.5	650	15195--25556	495--320
	7.5	720	16831--28308	607--393
	11	800	18701--31453	750--485
25	5.5	520	16896--28416	373--219
	7.5	580	18845--31694	464--272
	11	650	21120--35520	583--342
	15	720	23394--39345	715--491
28	7.5	500	21224--35696	422--262
	11	560	23771--39980	529--328
	15	600	25469--42836	608--377
	18.5	650	27591--46405	713--442
	22	720	30562--51403	875--542
30	11	520	27958--47022	551--341
	15	560	30108--50639	639--395
	18.5	580	31183--53563	685--424
	22	610	32769--55160	758--469
	30	650	34947--58777	860--532
33	11	400	27840--45800	424--290
	15	450	31320--51530	545--367
	18.5	500	34800--57260	680--453
	22	550	38280--62980	822--548
	30	600	41760--68700	970--652
	37	630	43850--72140	1080--719
36	15	350	31490--51810	396--264
	18.5	400	35990--59210	518--344
	22	450	40490--66610	654--436
	30	500	44990--74010	808--538
	37	550	49490--81420	970--651
	45	580	51280--85855	1086--723
